CARR771 Suzuki GT MOSFET Raddrizzatore del regolatore di tensione

  • Modello: CARR771
  • Peso spedizione: 0.5kg.
  • 69 disponibilità in magazzino
  • Prodotto da: Carmo
€107.09 Inc VAT
€88.50 Ex VAT
Qty :
+
-

Raddrizzatore del regolatore di tensione - CARR771 CARR-rotor-2
Adatto per batterie agli ioni di litio
3 anno di garanzia
Plug&Play


Among others suitable for:
Suzuki GT380 Sebring Raddrizzatore del regolatore di tensione 1972 1973 1974 1975 1976 1977
Suzuki RE500 Rotary (RE5) Raddrizzatore del regolatore di tensione 1975 1976
Suzuki GT550 Indy Raddrizzatore del regolatore di tensione 1972 1973 1974 1975 1976 1977
Suzuki GT750 Le Mans Raddrizzatore del regolatore di tensione 1972 1973 1974 1975 1976 1977


OEM numbers:
32500-31010 NIPPONDENSO 026000-2222
32800-31021 / 5610Y1
32500-37010
32800-37010

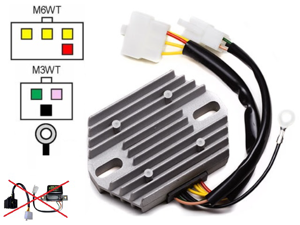

ORIGINAL BIKE WIRE CARR771 WIRE  FUNCTION
3x Yellow  3x Yellow  3 Phases from stator
Red  Red  Battery (+)
Orange  Pink  12V via Ignition switch
Green  Green  Battery (+) to the field coil
Black/white  Black  Field coil regulation on/off (-)
  Black (ring) Ground


We manufacture a wide range of regulator rectifiers to fit new and older motorcycles.
New advanced design - most of our regulator rectifiers now feature highly advanced metal ceramic heat transfer and are built using the latest equipment, making them extremely rugged and reliable.

Motorbike ROTOR Voltage regulator rectifier MOSFET Litium Ion


rotor motorbike motorcycle voltage regultaor dimentions hole size
